RALPH LAUREN RETAIL STORE — KANSAS CITY

We created a Digital Twin from a Point Cloud LiDAR scan of a Ralph Lauren retail store in Kansas City, delivering a reliable Revit model to support documentation and furniture planning for future rollouts.

The model covered architecture, structure, and MEP systems, and included custom parametric families, all developed at a medium level of detail to balance accuracy and performance.

project type

commercial

location

KS, USA

area

778 m² / 8,380 ft²

[ Project Stages ]

Scan

Model

Delivery

[ Point Cloud vs Model ]

[ Challenges ]

Recreating the store’s modular casework

One of the key project challenges was recreating the store’s modular casework. To address this, we built a single adaptable Revit family capable of adjusting shelf quantities, dimensions, mirror placements, and panel visibility. This not only improved modeling efficiency but also made it easy for the client to reuse and adapt the furniture layout in other stores.

Aligning model geometry with point cloud deviations

Due to structural irregularities in the scanned data, we had to develop custom modeling techniques to accurately match walls, ceiling angles, and store-front elements while maintaining clean geometry for future reuse.

Capturing in-store lighting logic

The client required not just the lighting layout but also logical grouping and labeling of fixtures to match the store’s operational zones. This required precise placement and custom naming conventions within the Revit model.

[ Results ]

This digital twin helped the client assess furniture reuse, validate spatial dimensions, and prepare detailed as-built documentation for planning and permitting.

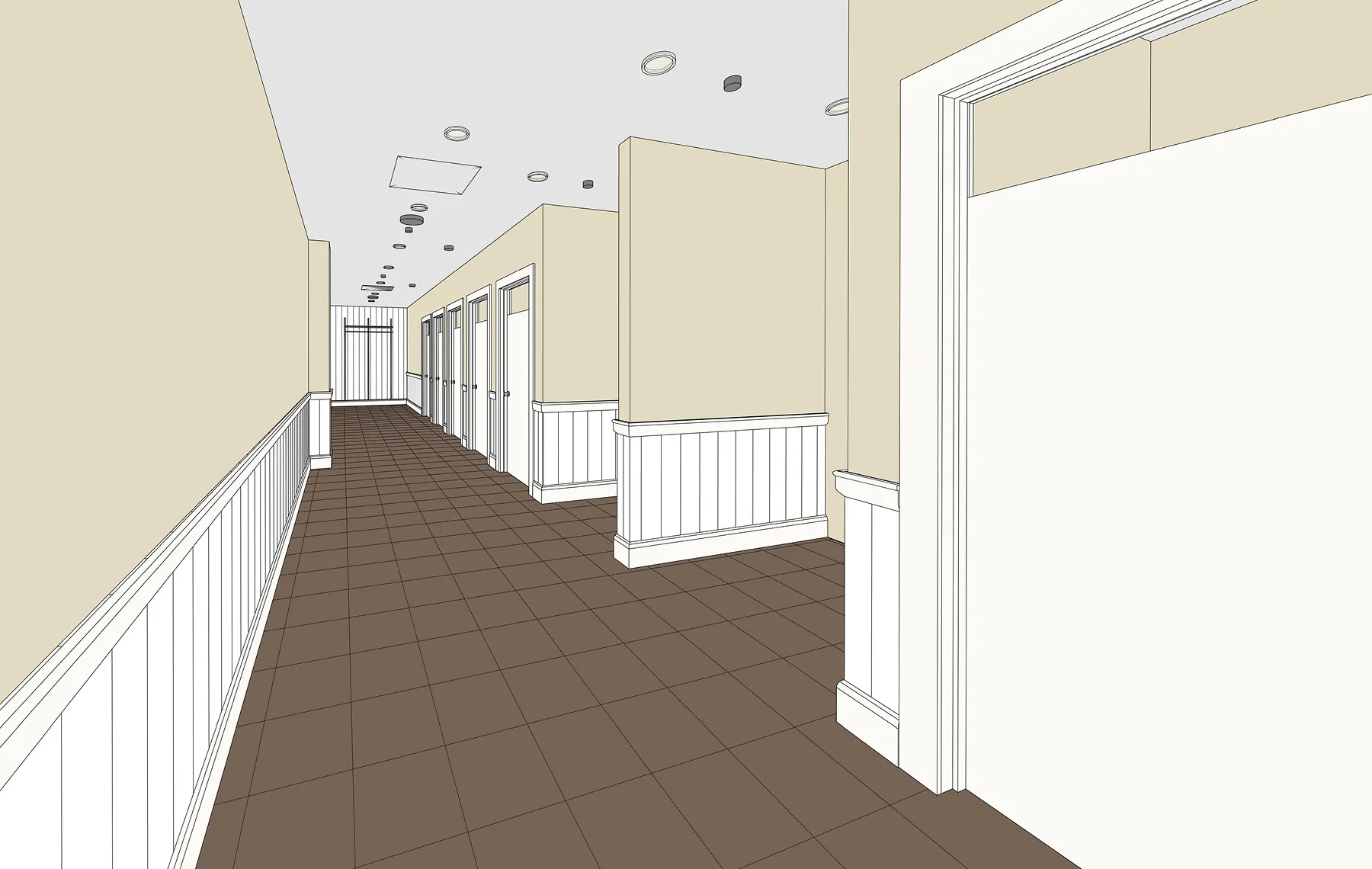

Revit model

A clean, organized Revit model ready for coordination
