POTABLE WATER TECHNICAL ROOM — AUSTRIA
We built a detailed Digital Twin from a Point Cloud Scan of a potable water technical room in Linz, Austria, to help engineers plan the renovation of existing MEP equipment.
We also created clear sections and elevations to show technical areas and mark pipe types.
project type
Industrial
location
Linz, Austria
area
1256 m² / 13,510 ft²
[ Project Stages ]
01
02
03
04

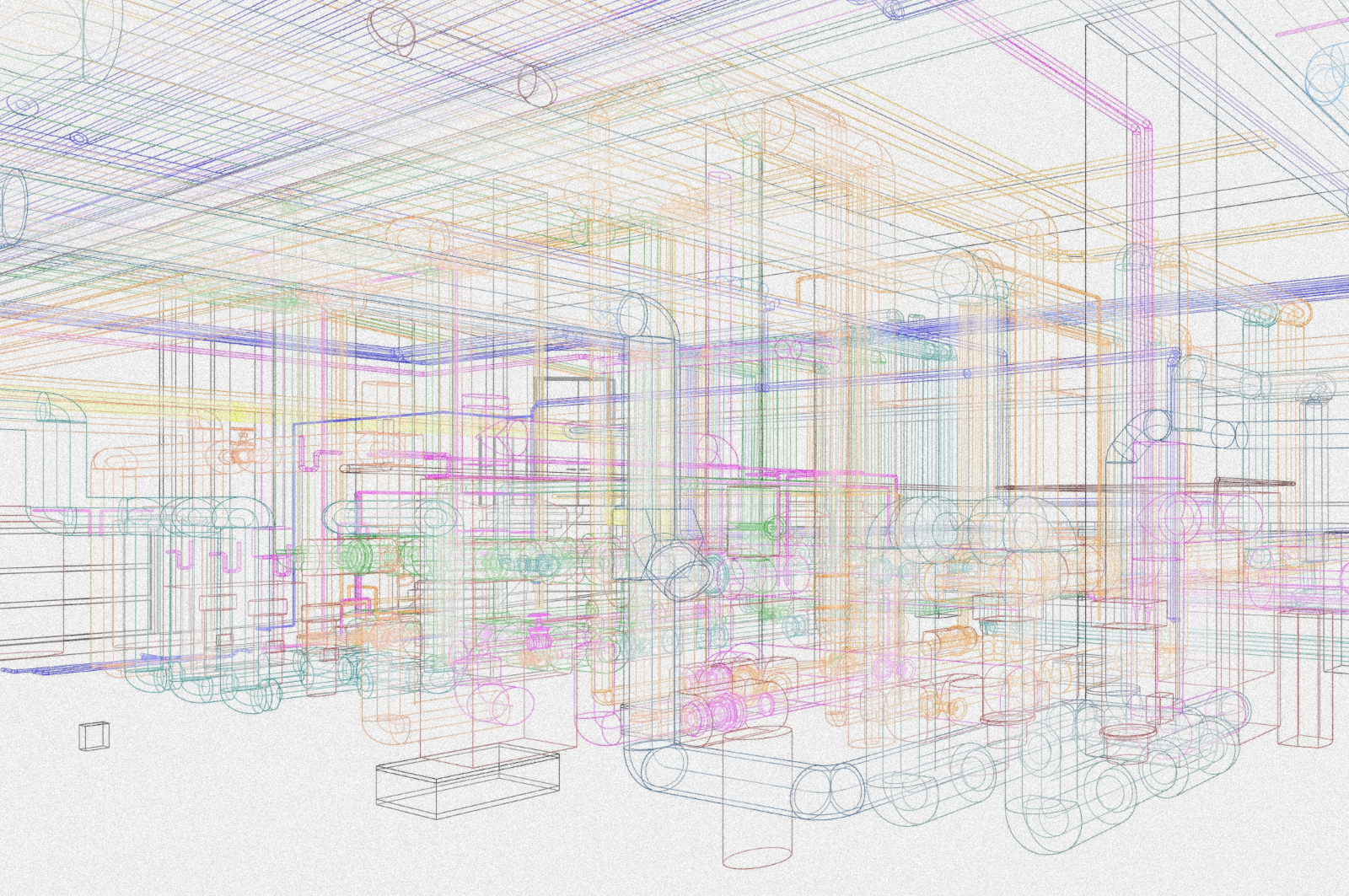

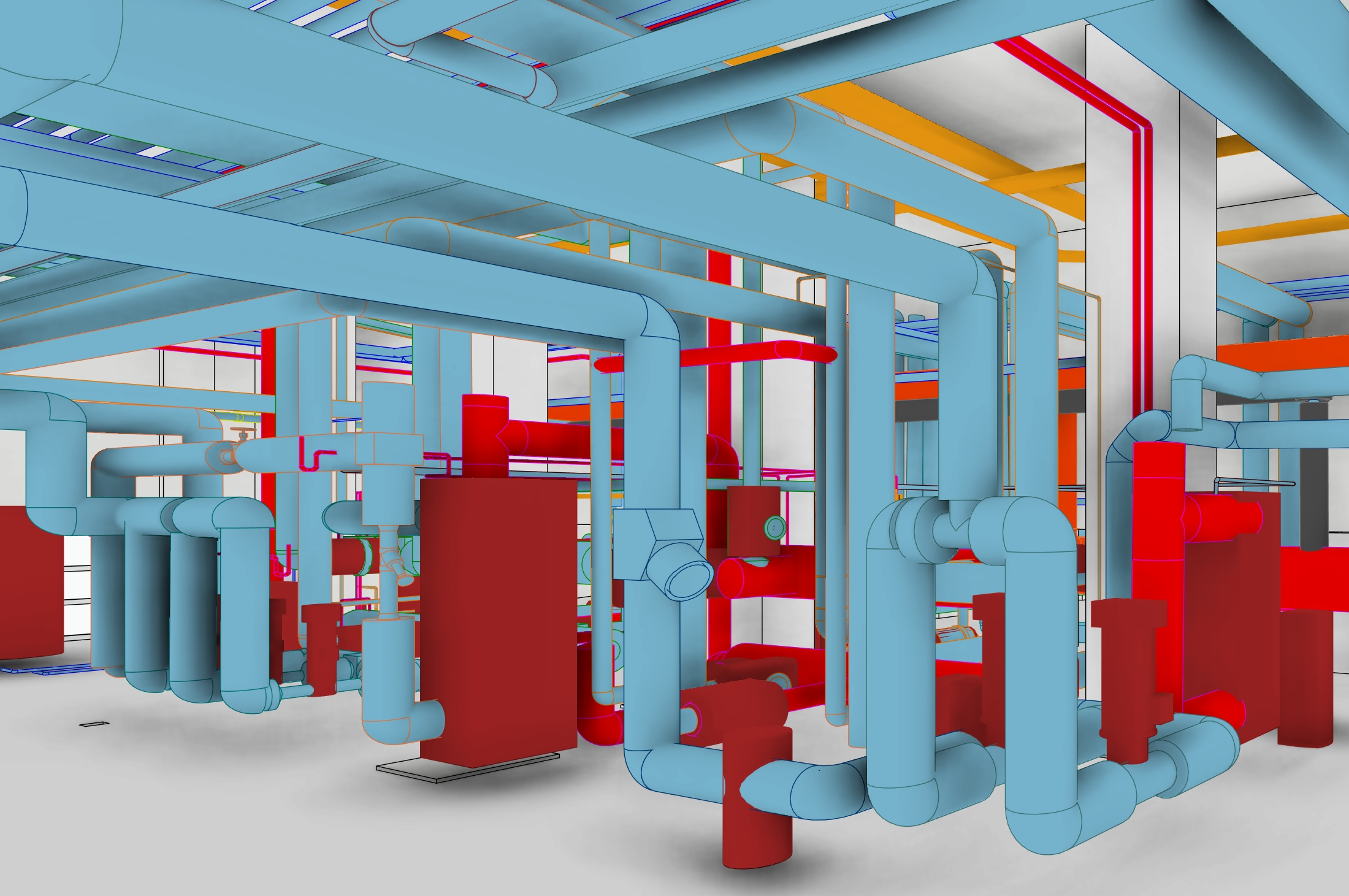

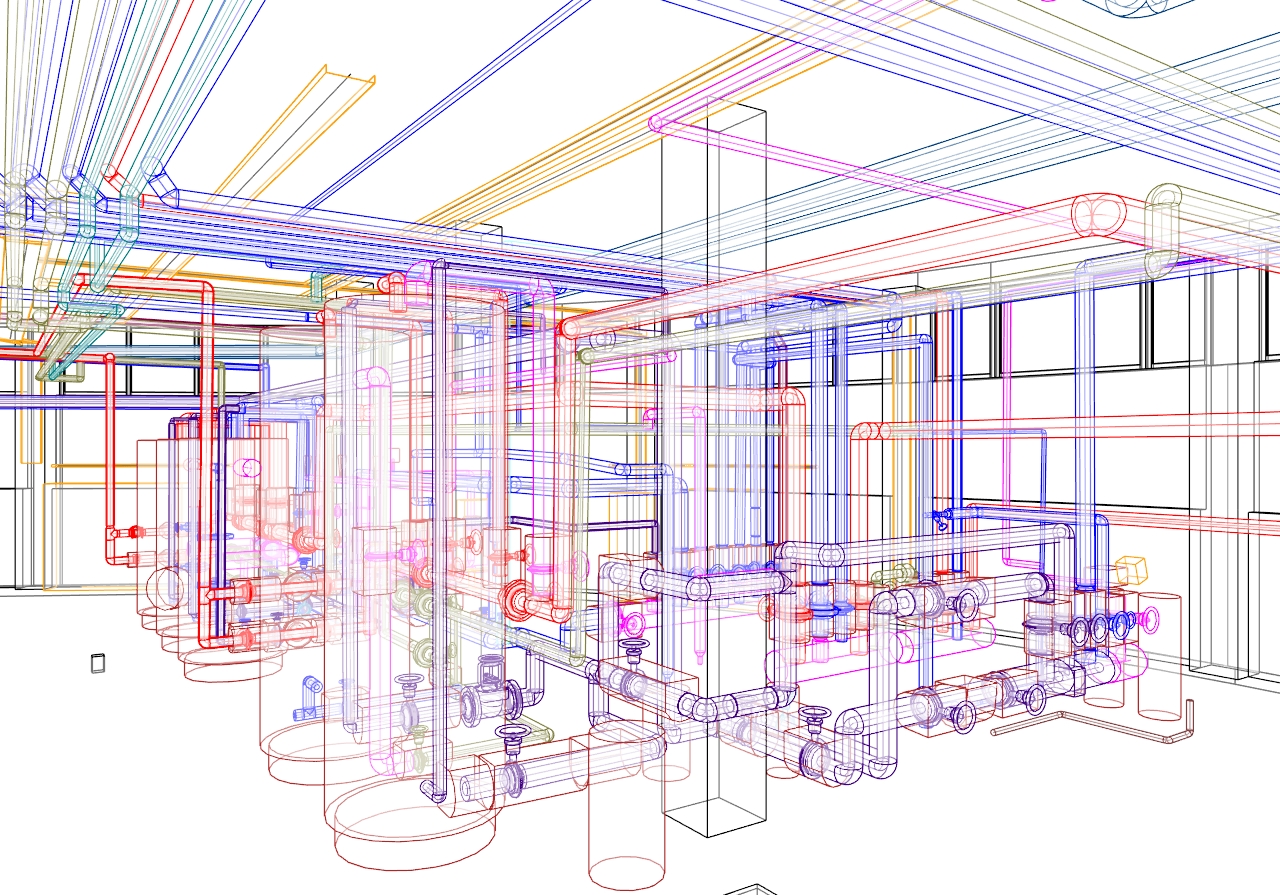

[ Point Cloud vs Model ]
[ Challenges ]
Technical Drawings creation for highlighting the Elements

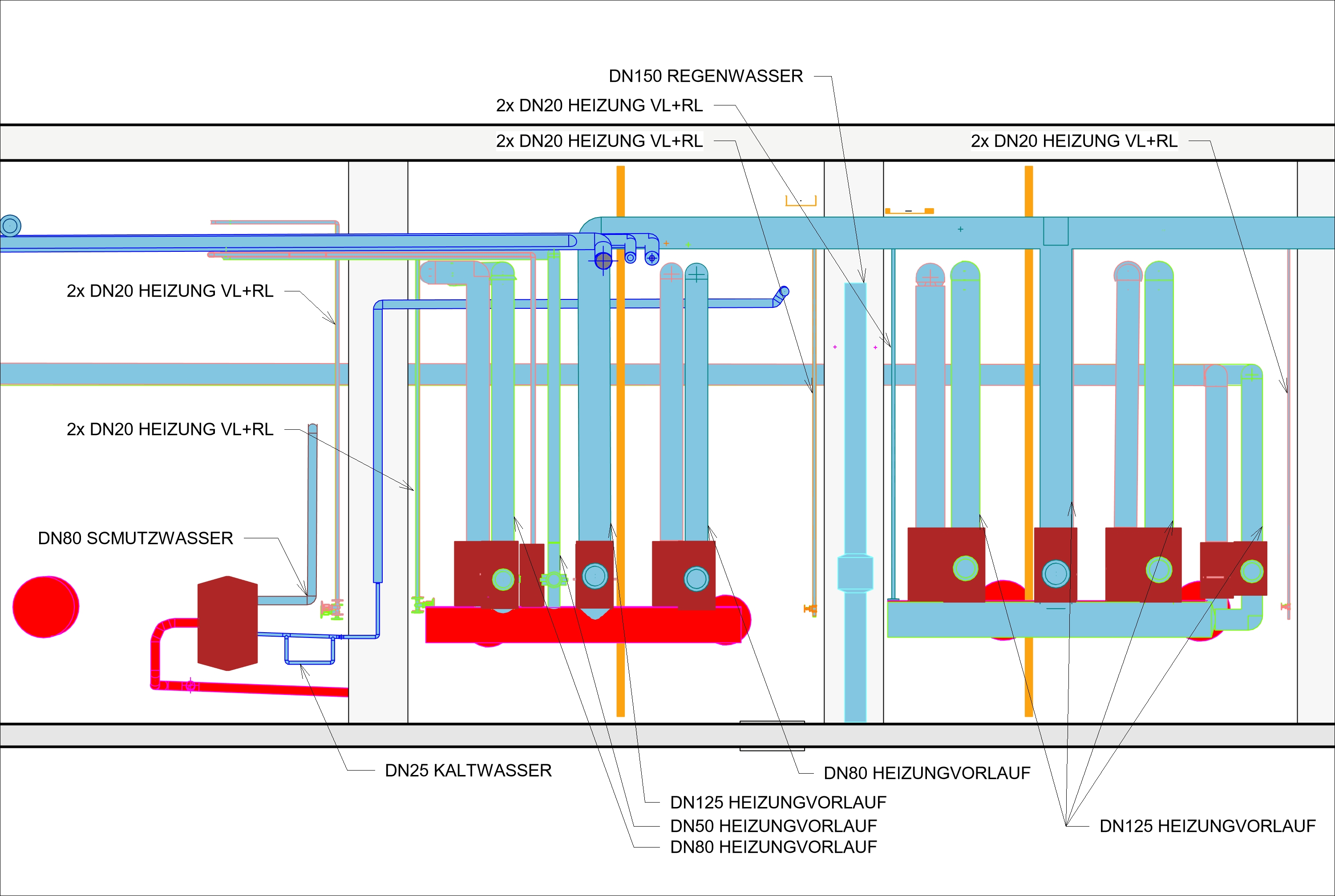

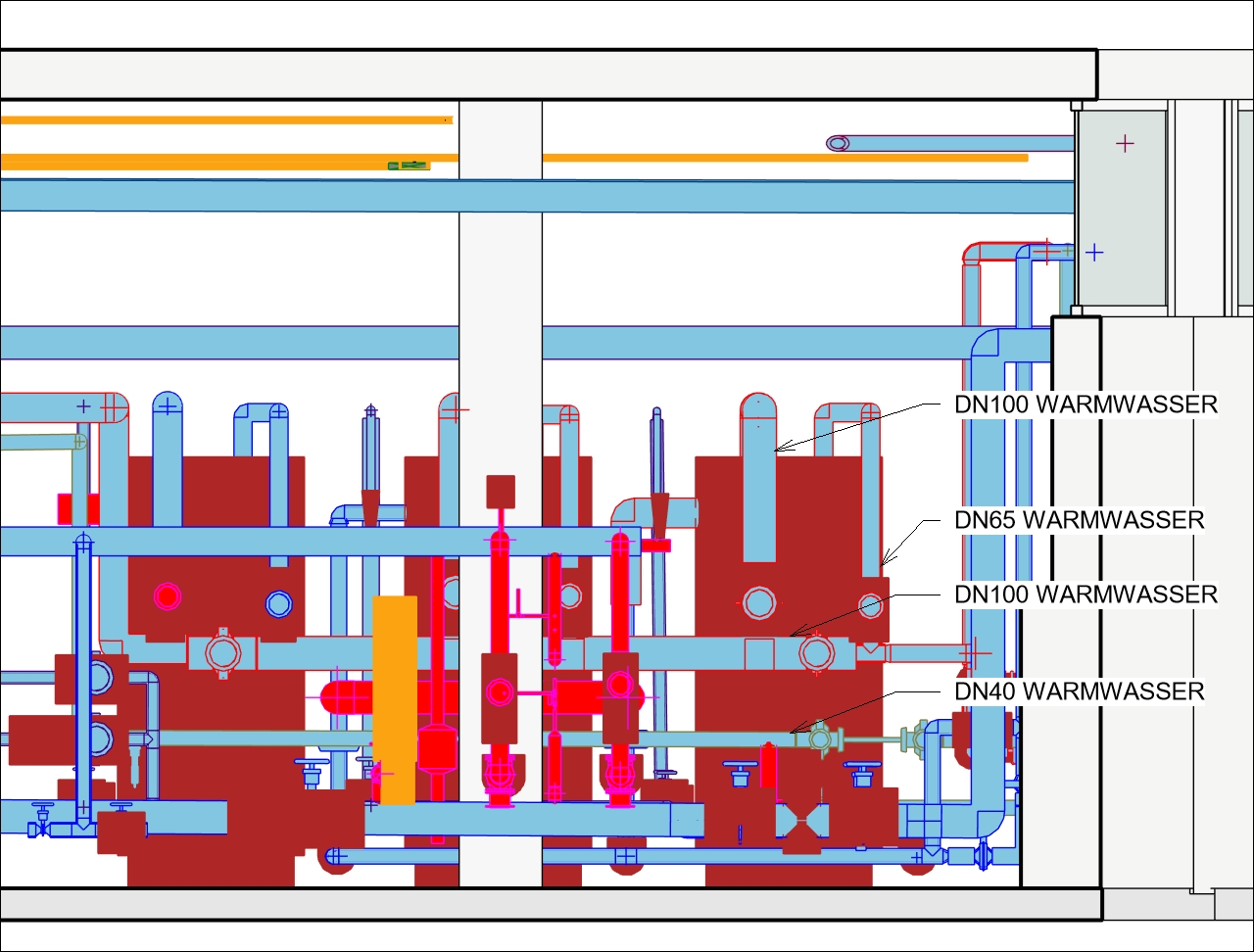

We created multiple sections and elevations to illustrate the location of MEP elements within the project. All pipe types were tagged in the drawings, making it easier to understand the system layout and coordinate with the rest of the design.
[ Results ]
Digital twins help clients visualize their projects, track existing conditions, explore design options, and improve planning, coordination, and maintenance processes

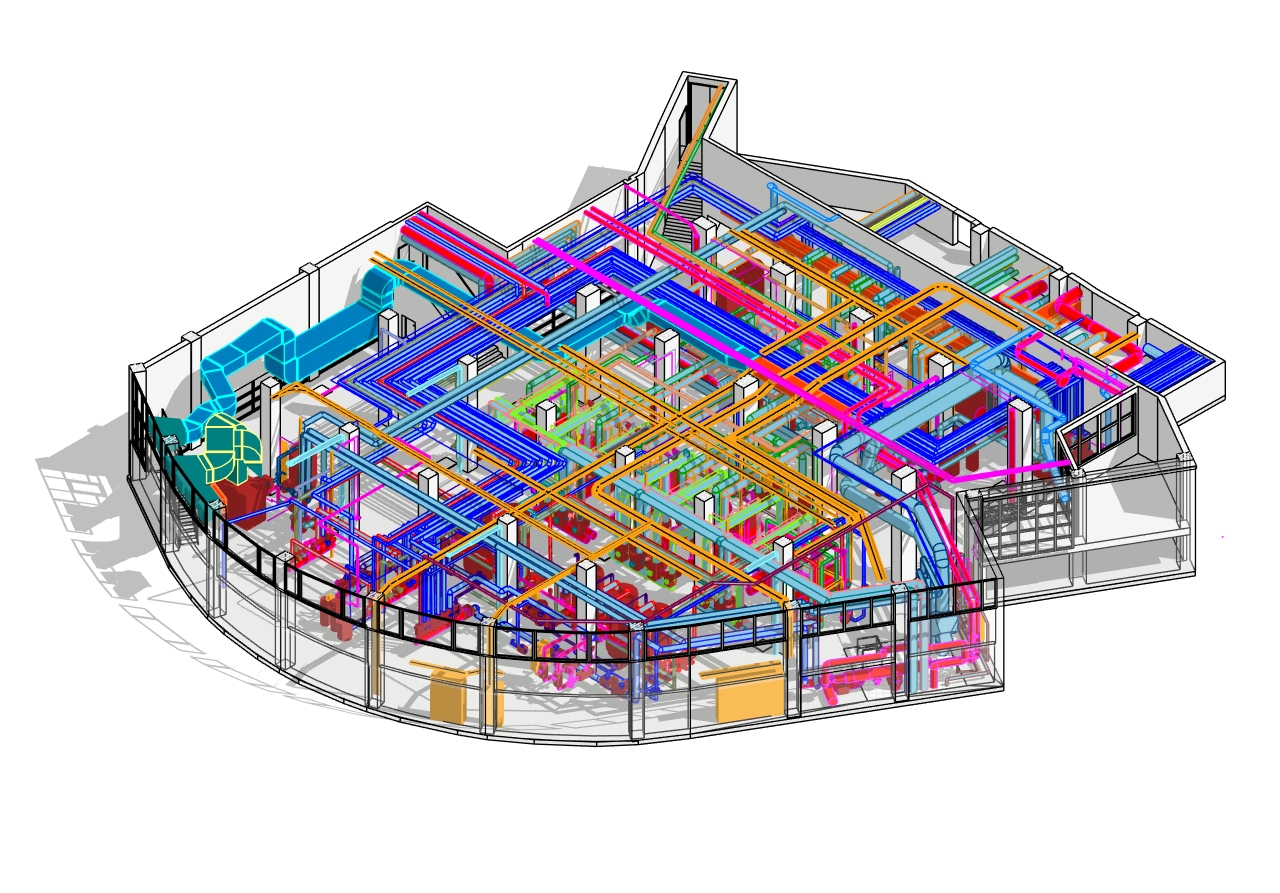

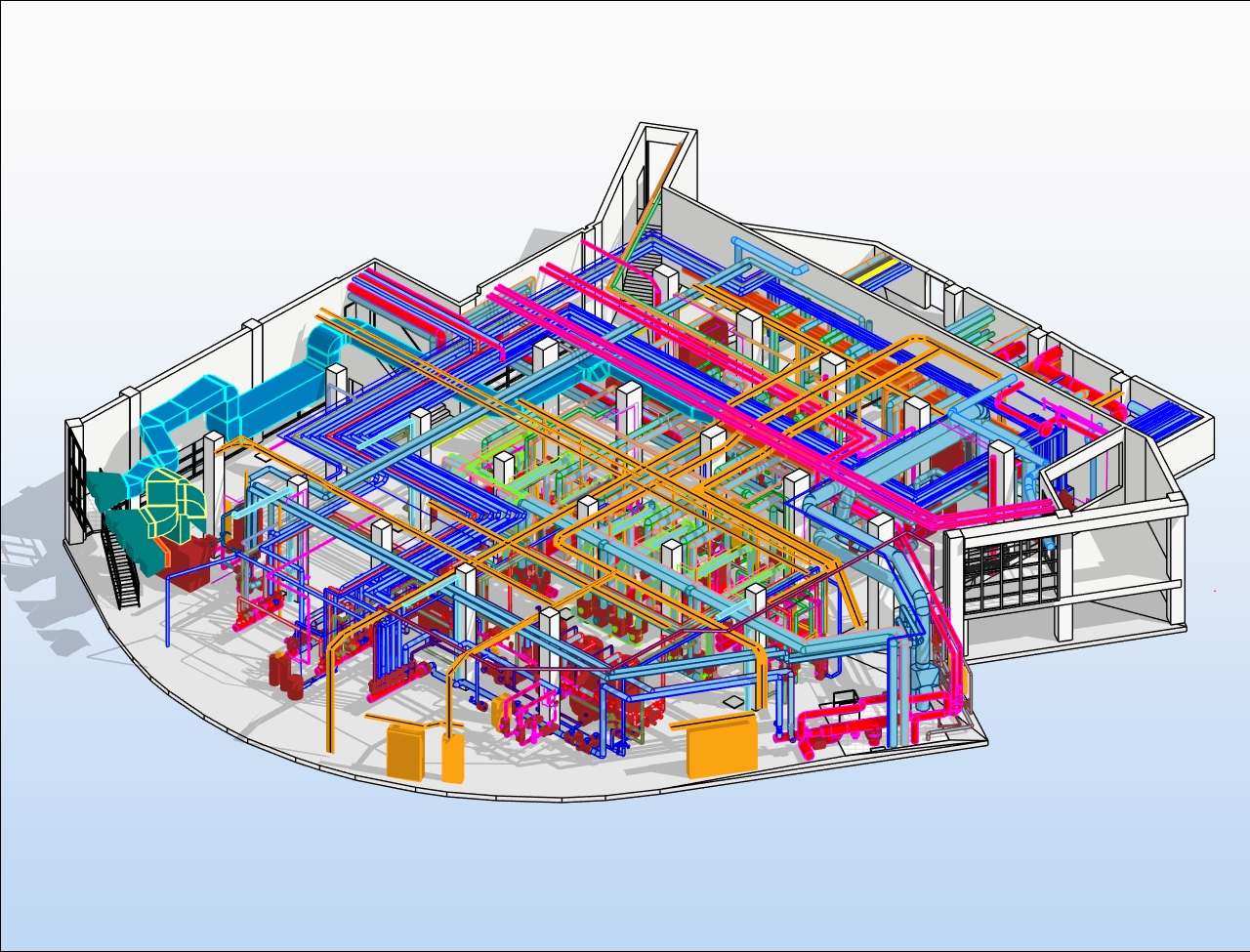

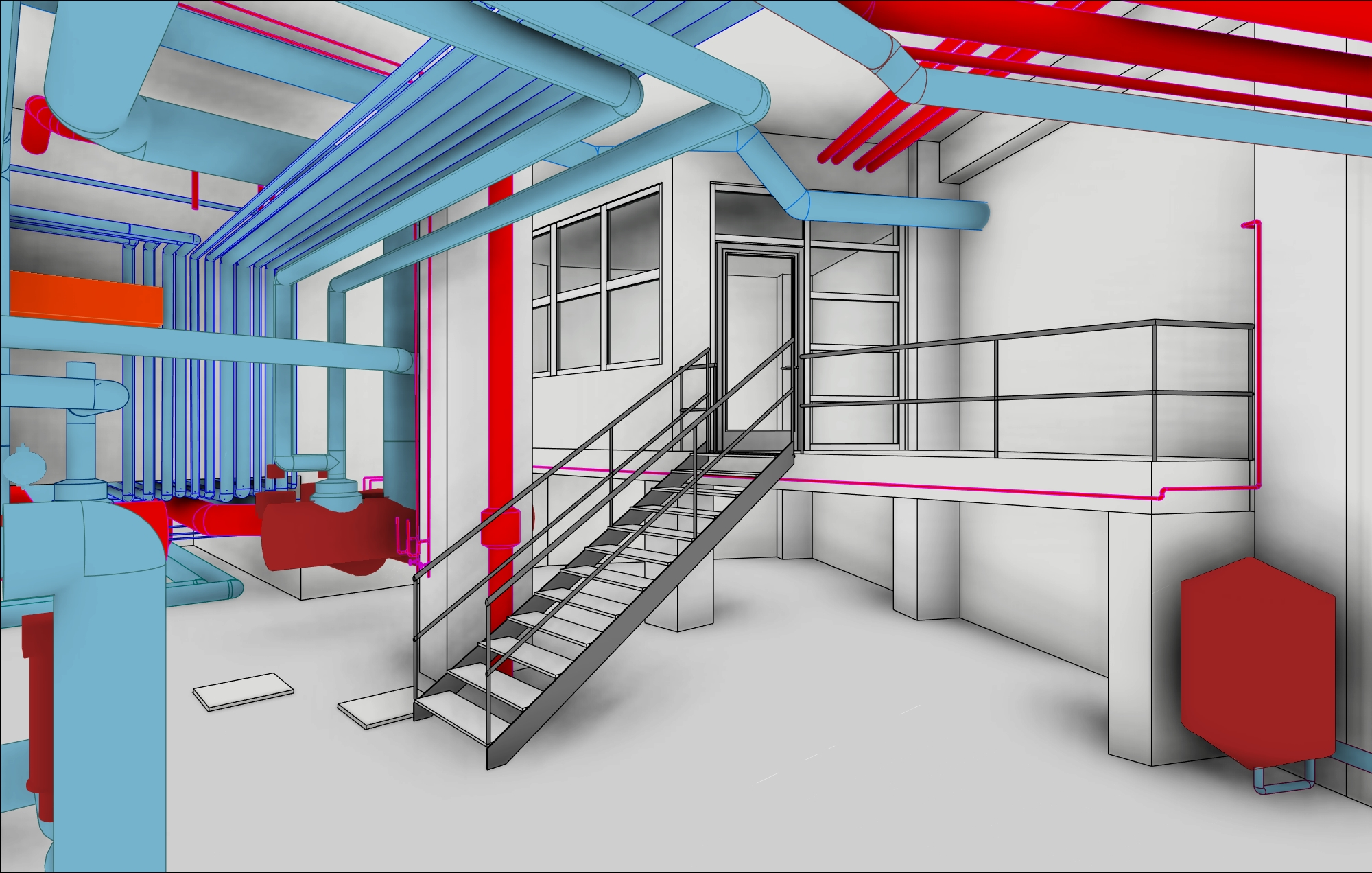

Revit Model
A complete virtual version of the project, ready for review and updates.
Technical Drawings
Easy-to-read plans and sections showing all key details.
Walkthrough Video
A short video tour to see the project from every angle.
3D Walkthrough Video via Autodesk Construction Cloud
An online 3D tour that clients can view and explore anytime.
