RESIDENTIAL VILLA - THE BAHAMAS
We created a coordinated BIM Model and a set of technical drawings that show the actual conditions of the building
We showed the interior and exterior architectural parts, and the landscape.
project type
Residential
location
The Bahamas
area
295 m² / 3175 ft²
[ Project Stages ]
01
02
03
04

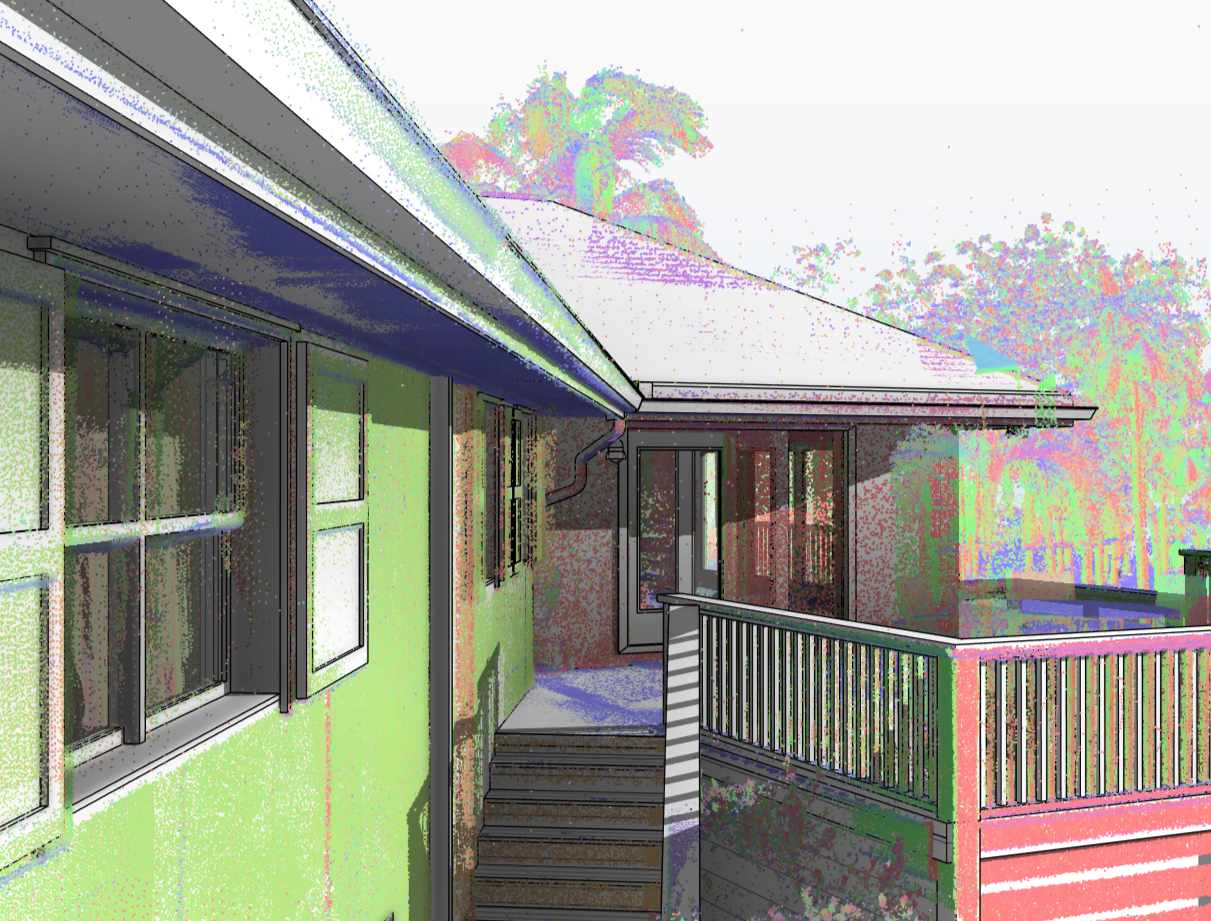

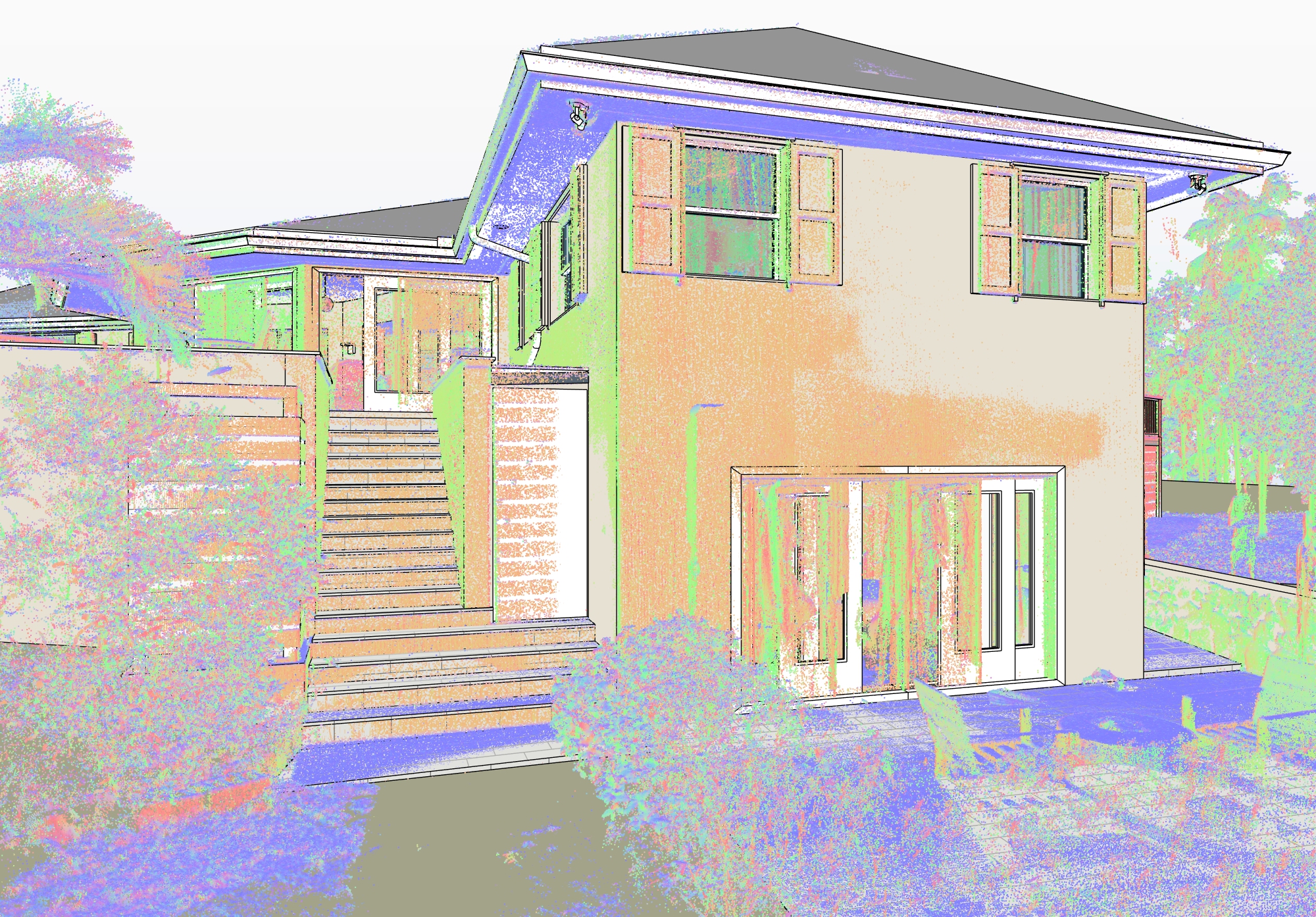

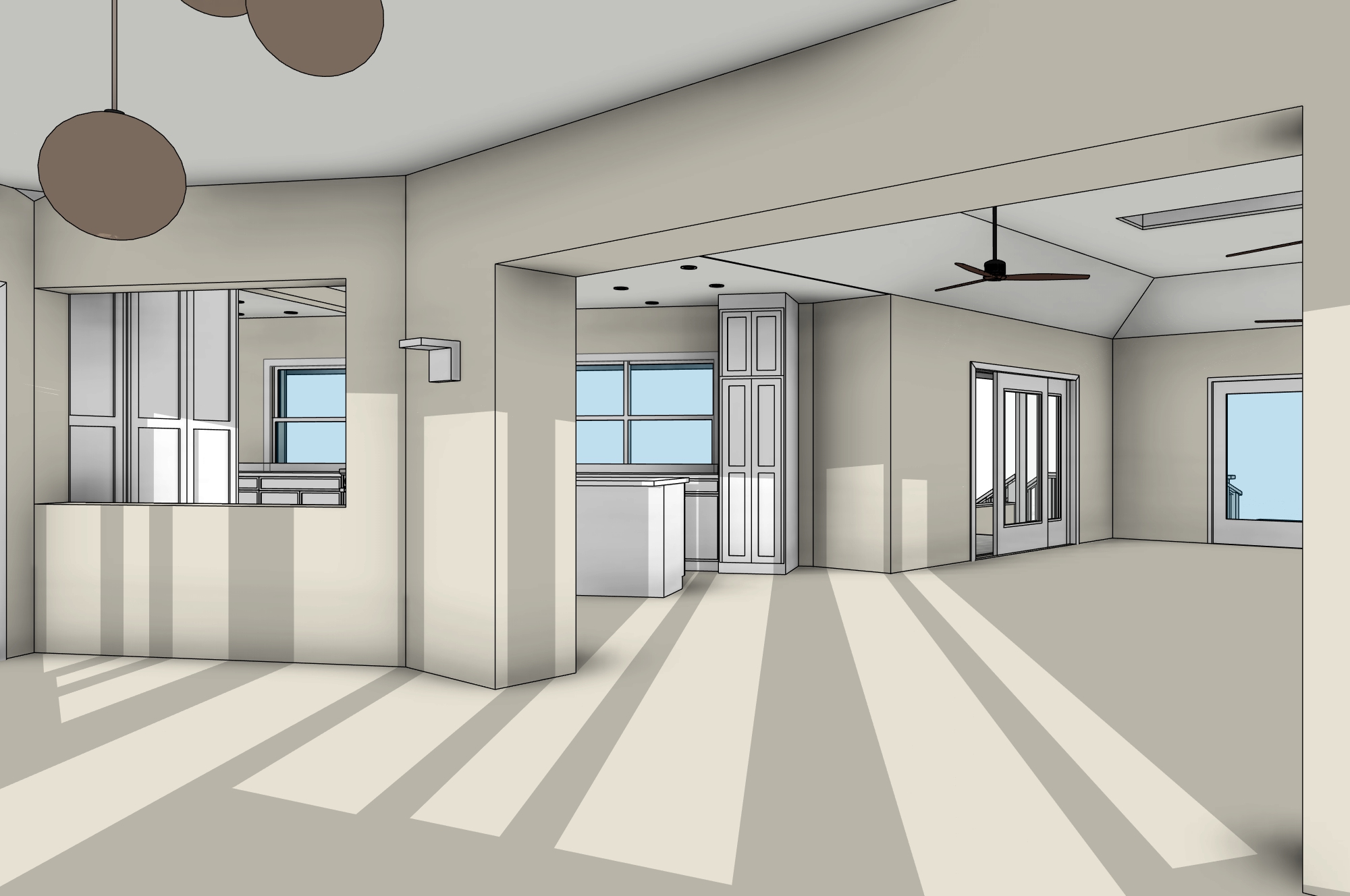

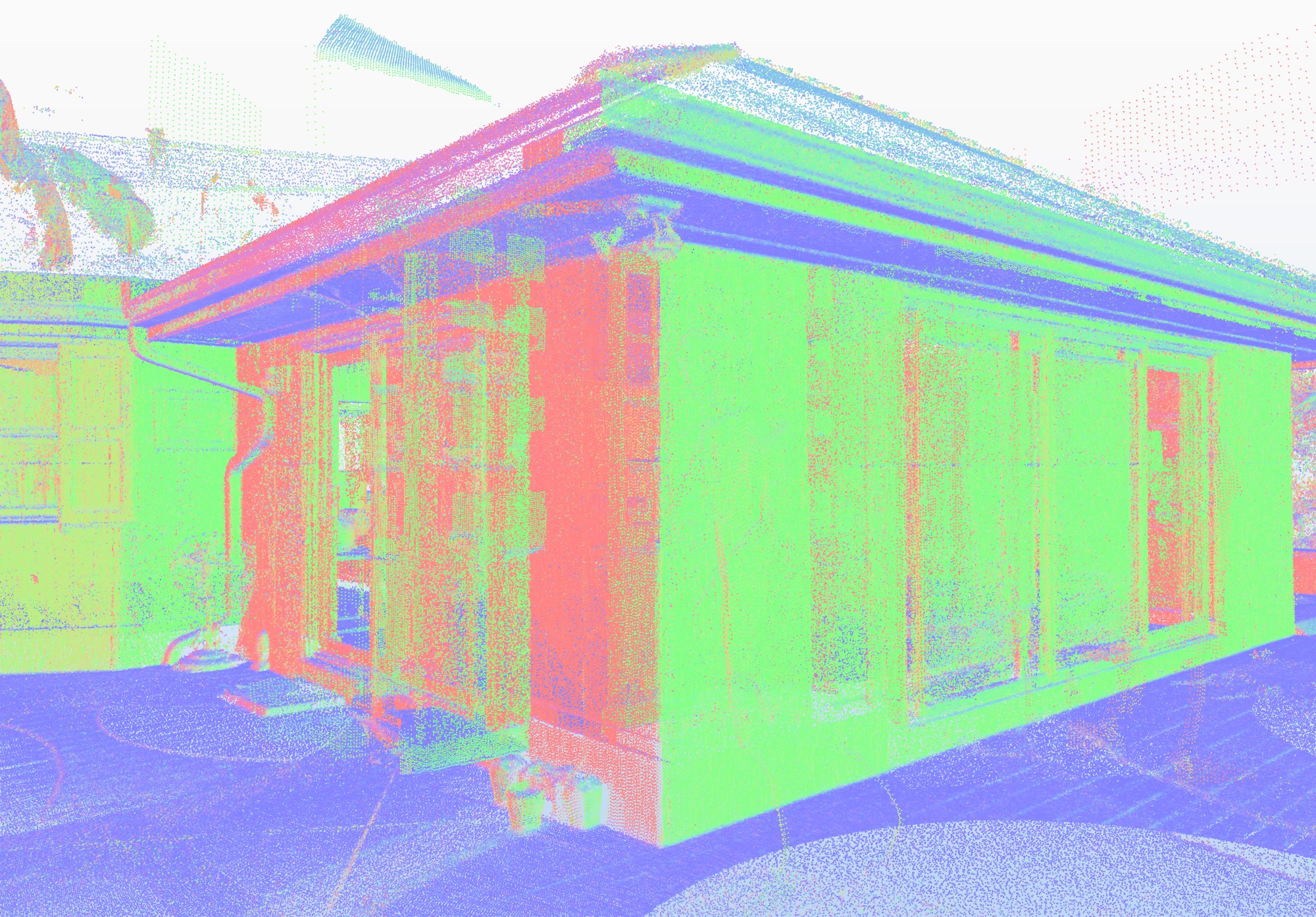

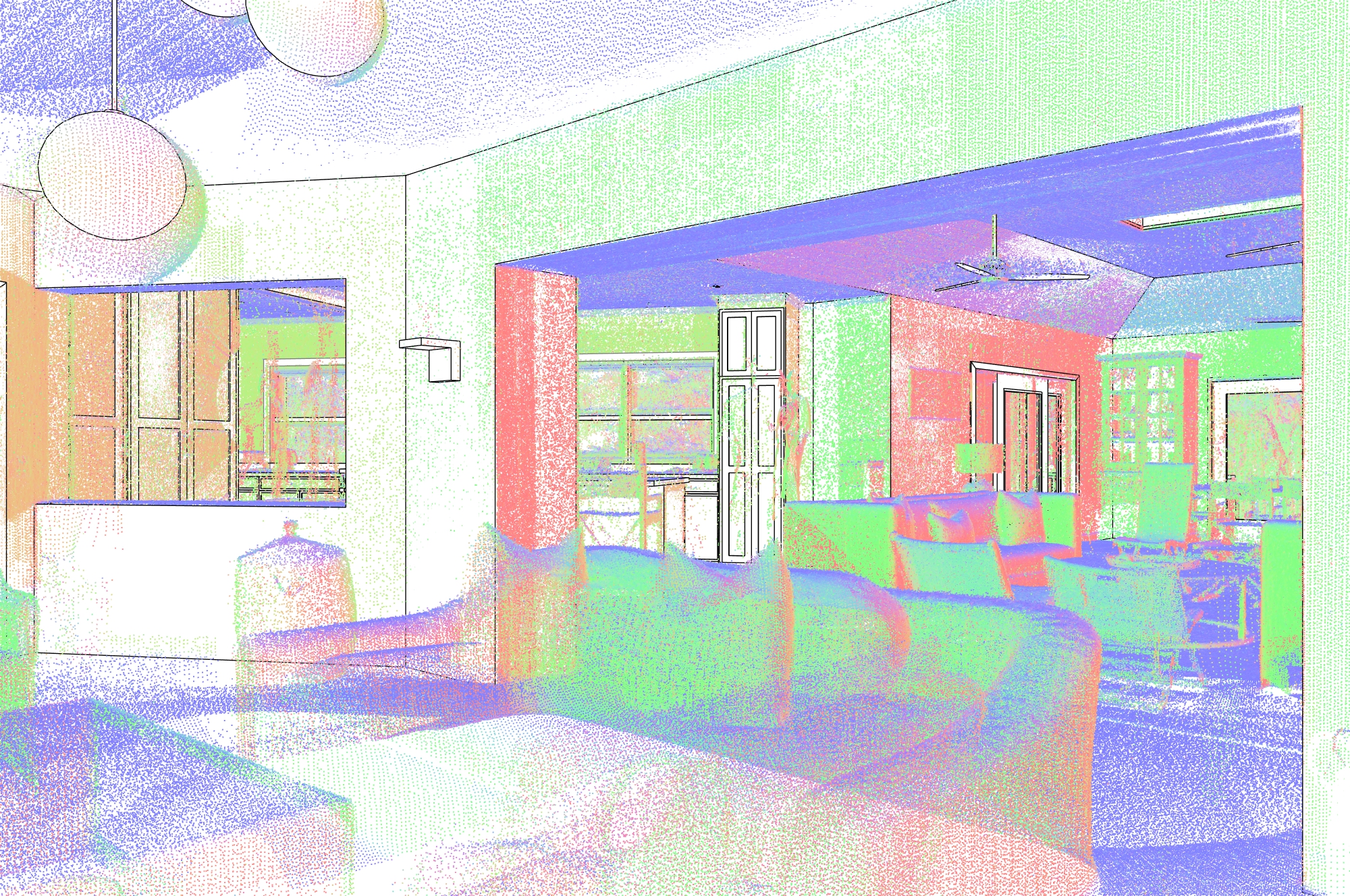

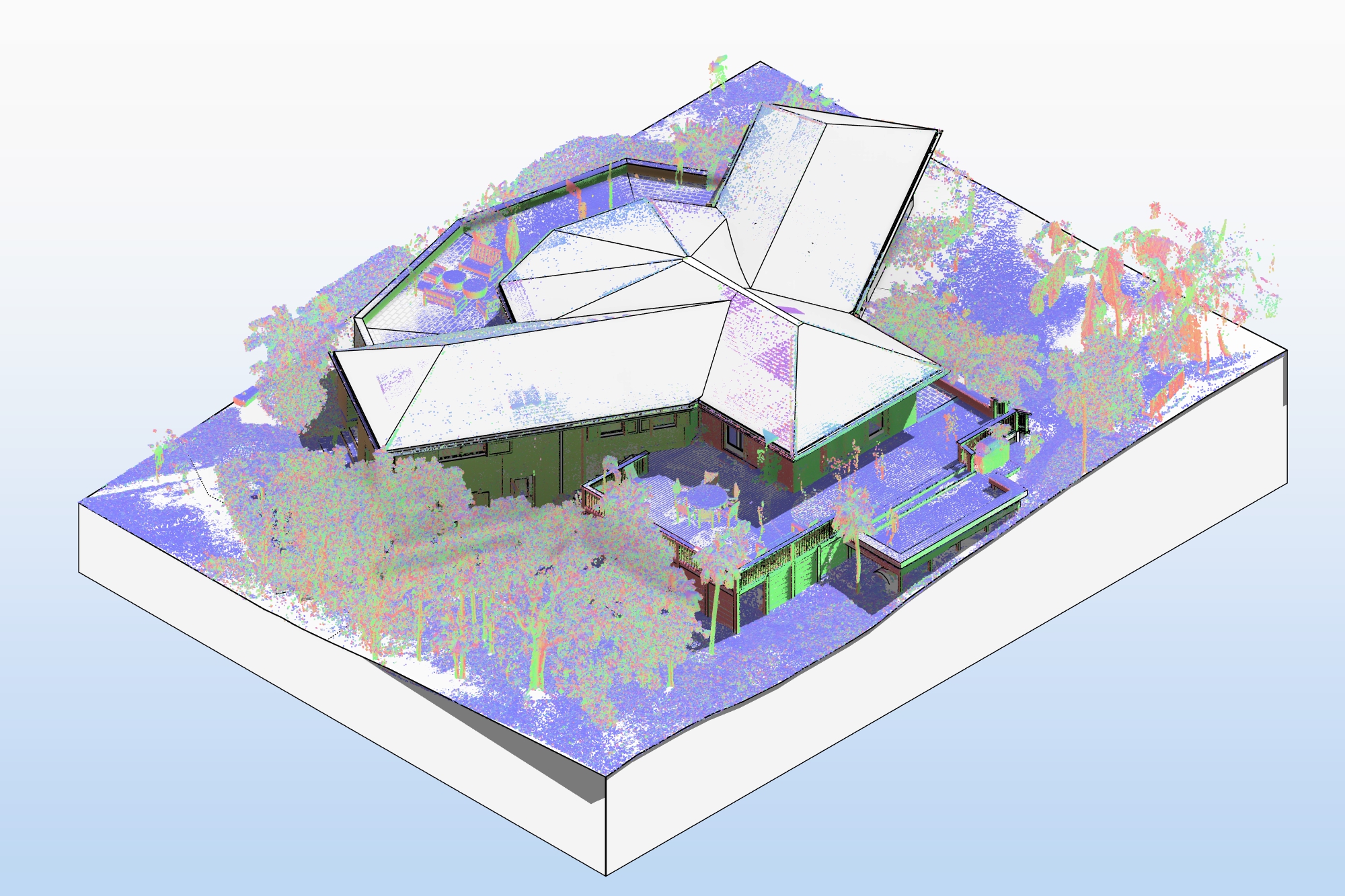

[ Point Cloud vs Model ]
[ Challenges ]
Topo Modelling
Topography was also among the client's key priorities. As the building is situated on a slope, it is essential that we accurately showcase the exact geometry of the terrain.

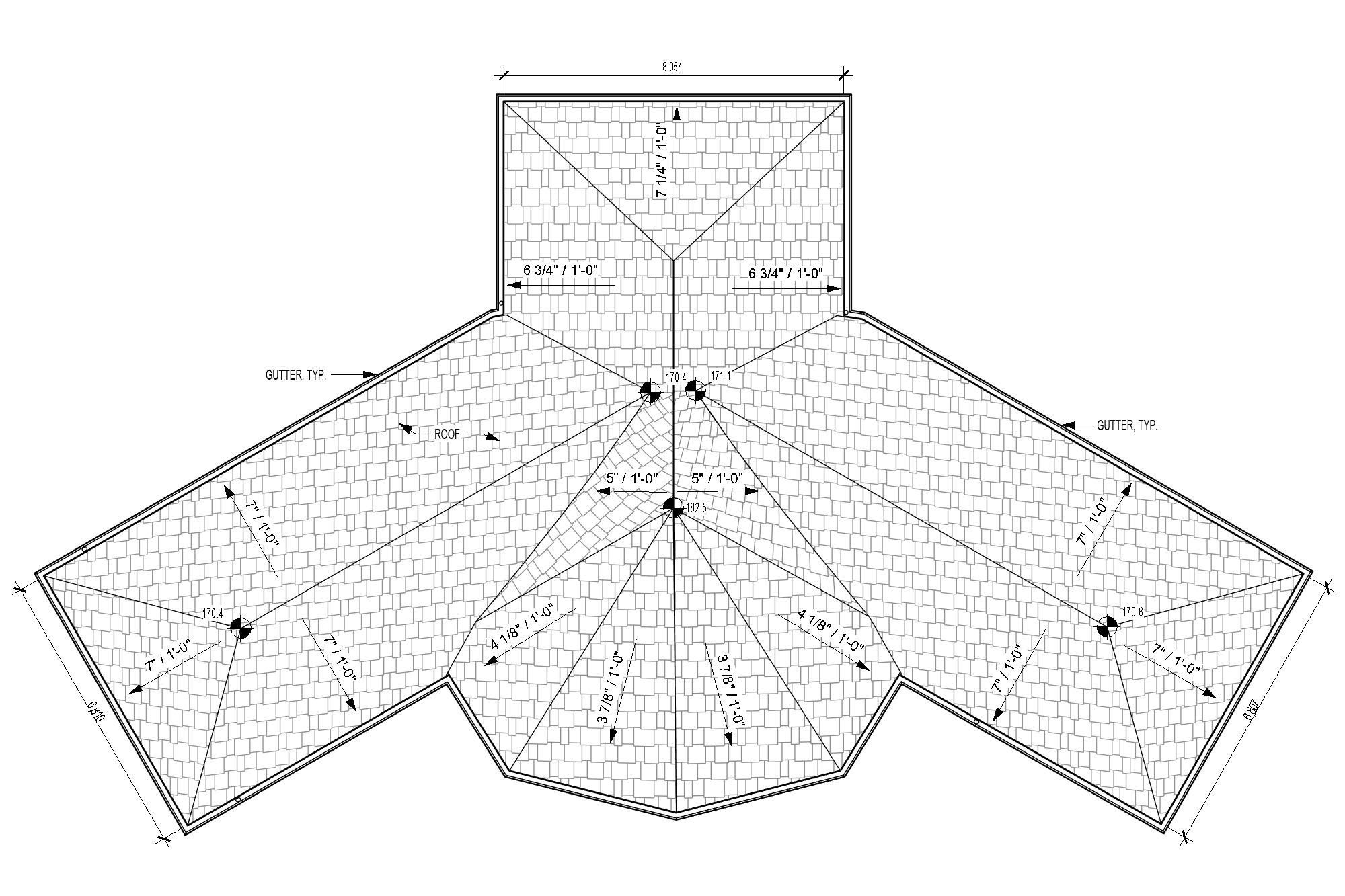

Architectural Drawings Package
As said, the main object was to create an accurate BIM Model, with a full pasporrtization package. And also to showcase accurate terrain modelling.
[ Results ]
Digital twins help clients visualize their projects, track existing conditions, explore design options, and improve planning, coordination, and maintenance processes

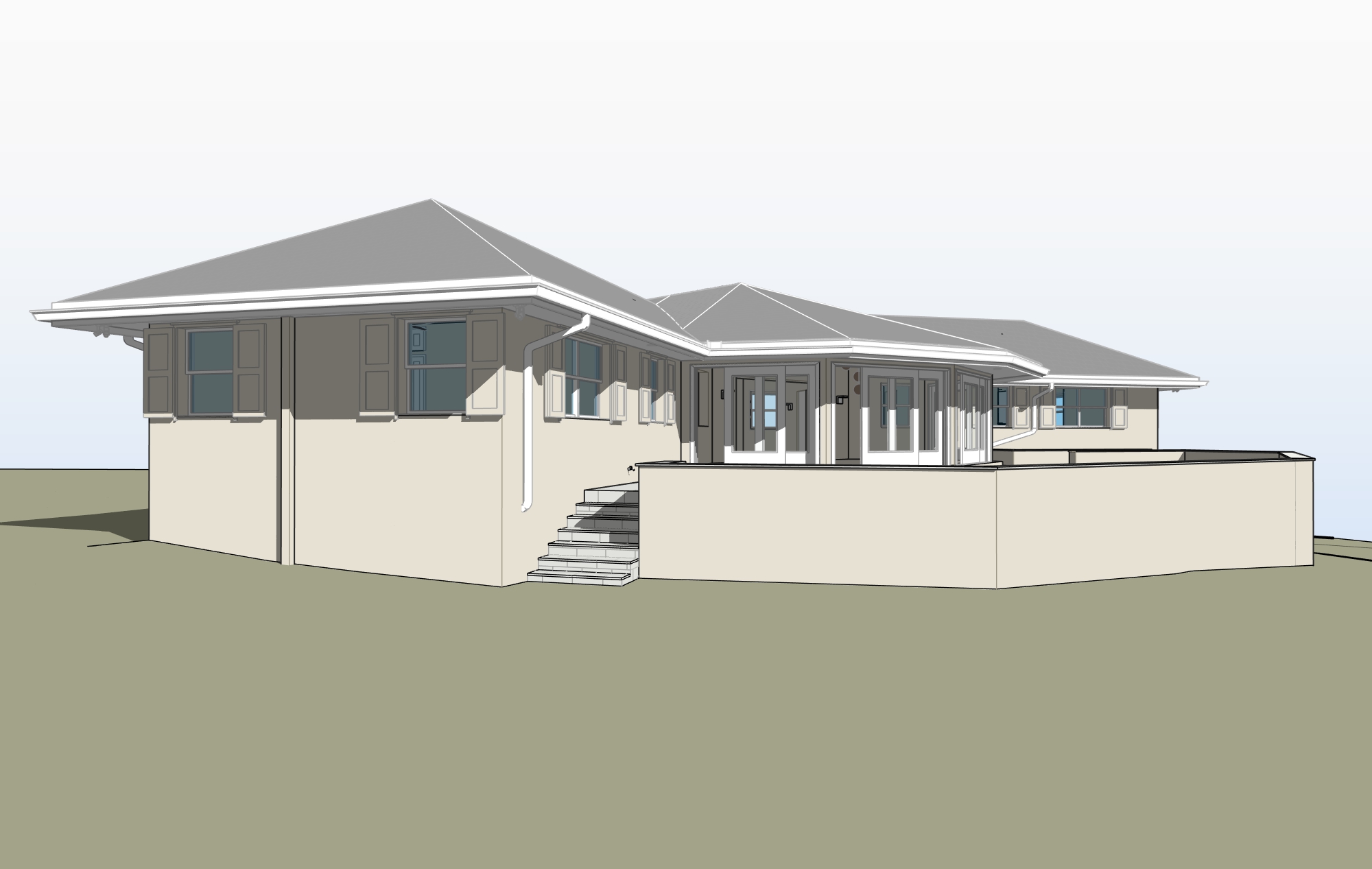

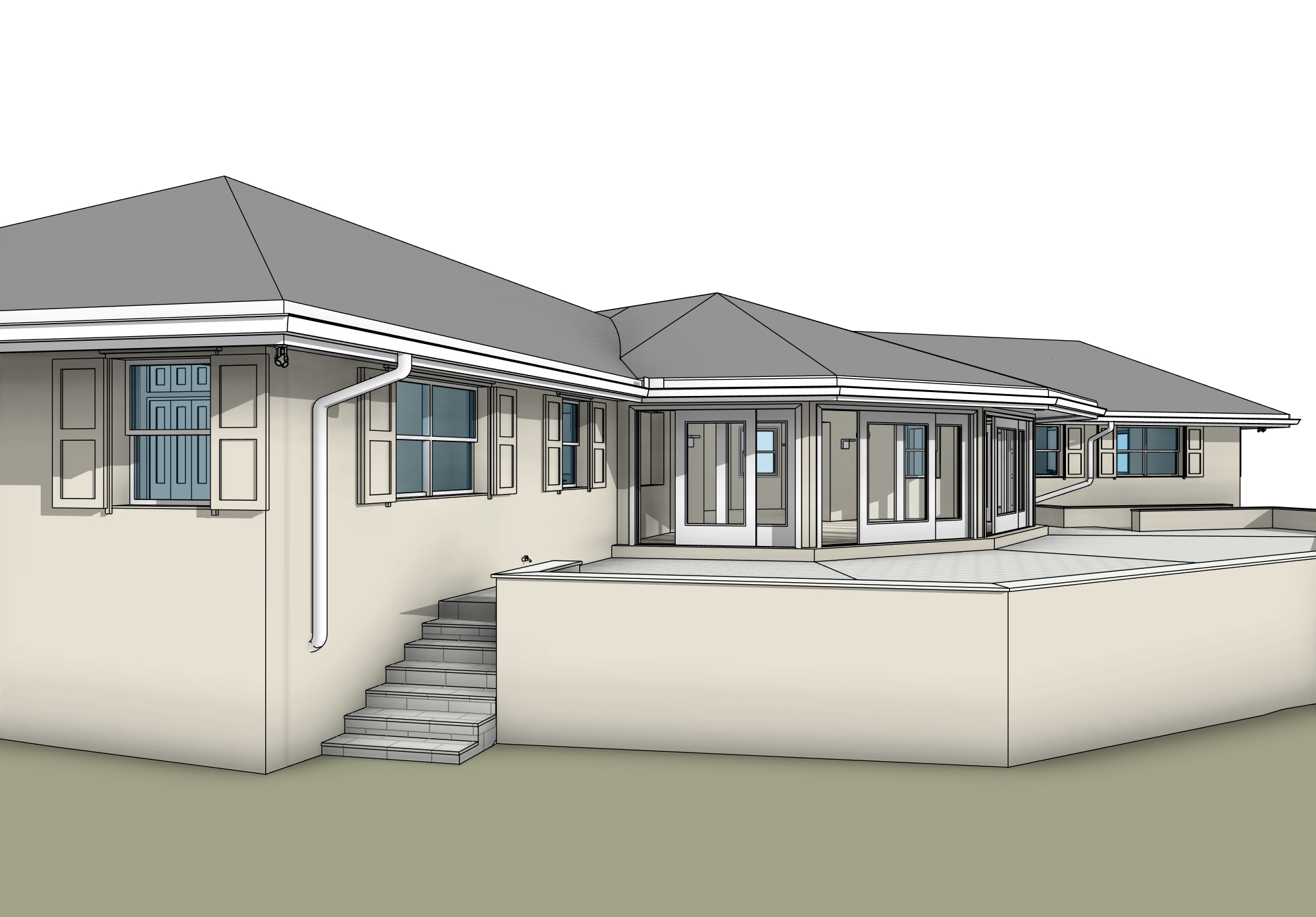

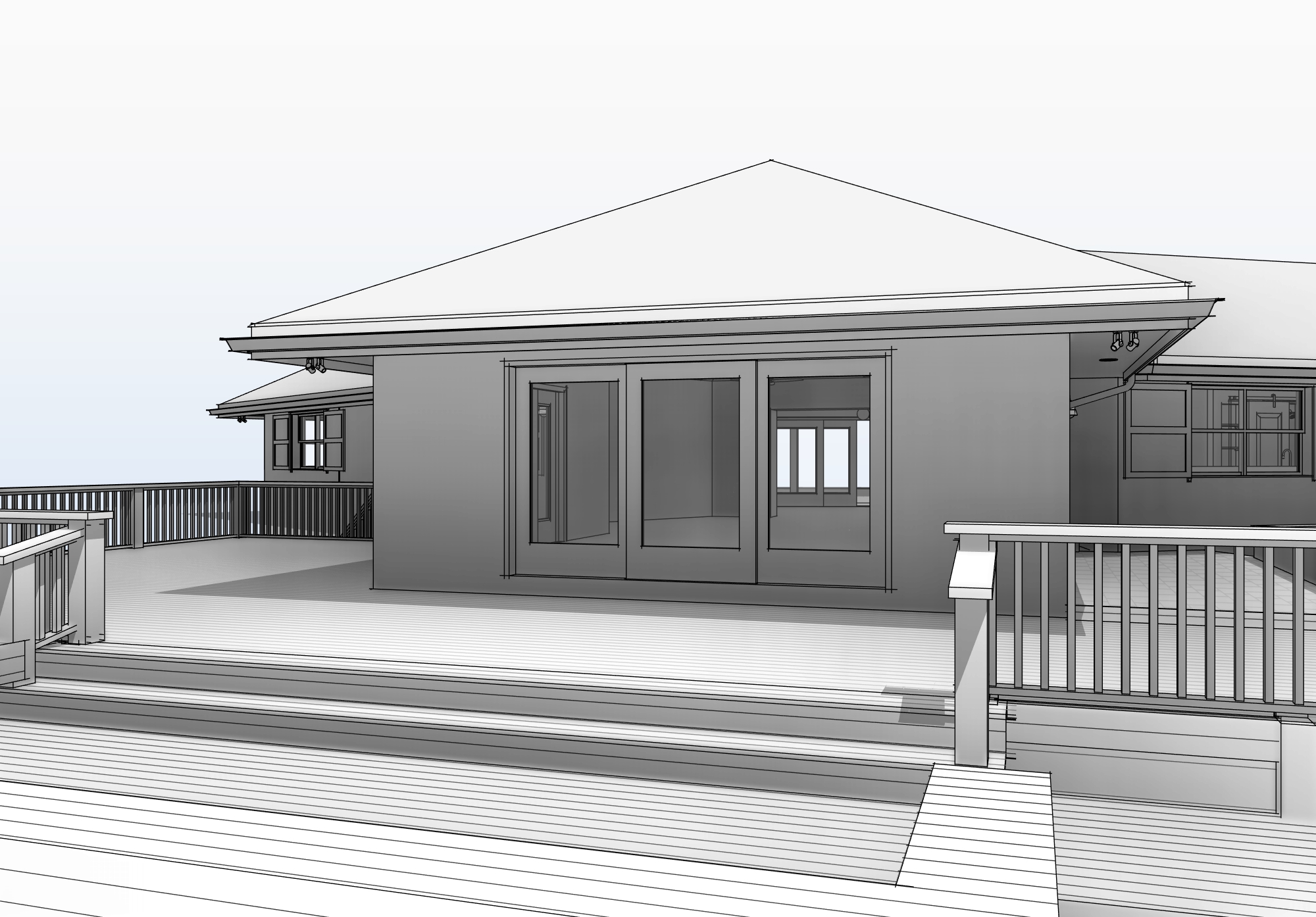

BIM Model
A complete virtual version of the project, ready for review and updates.

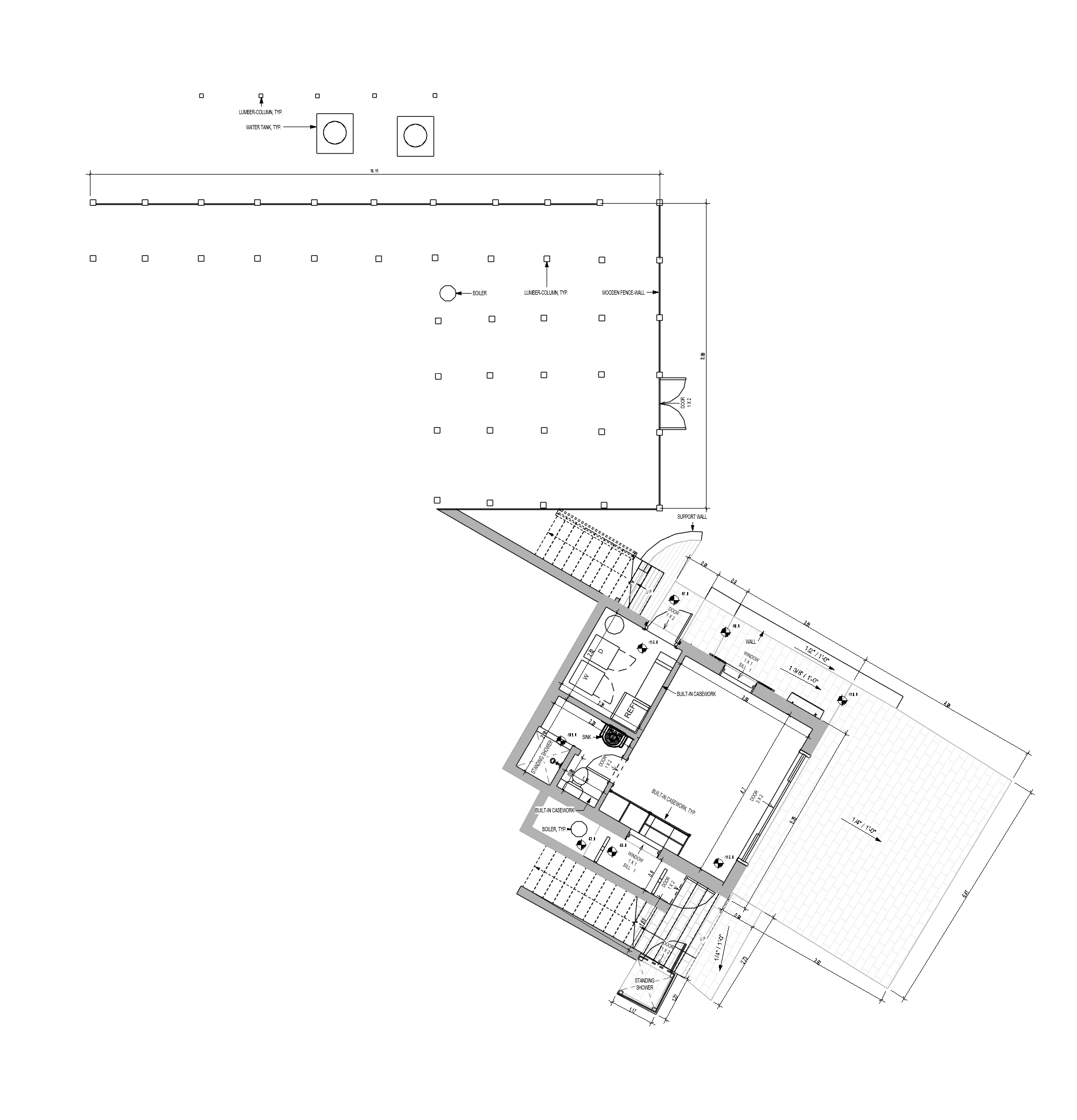

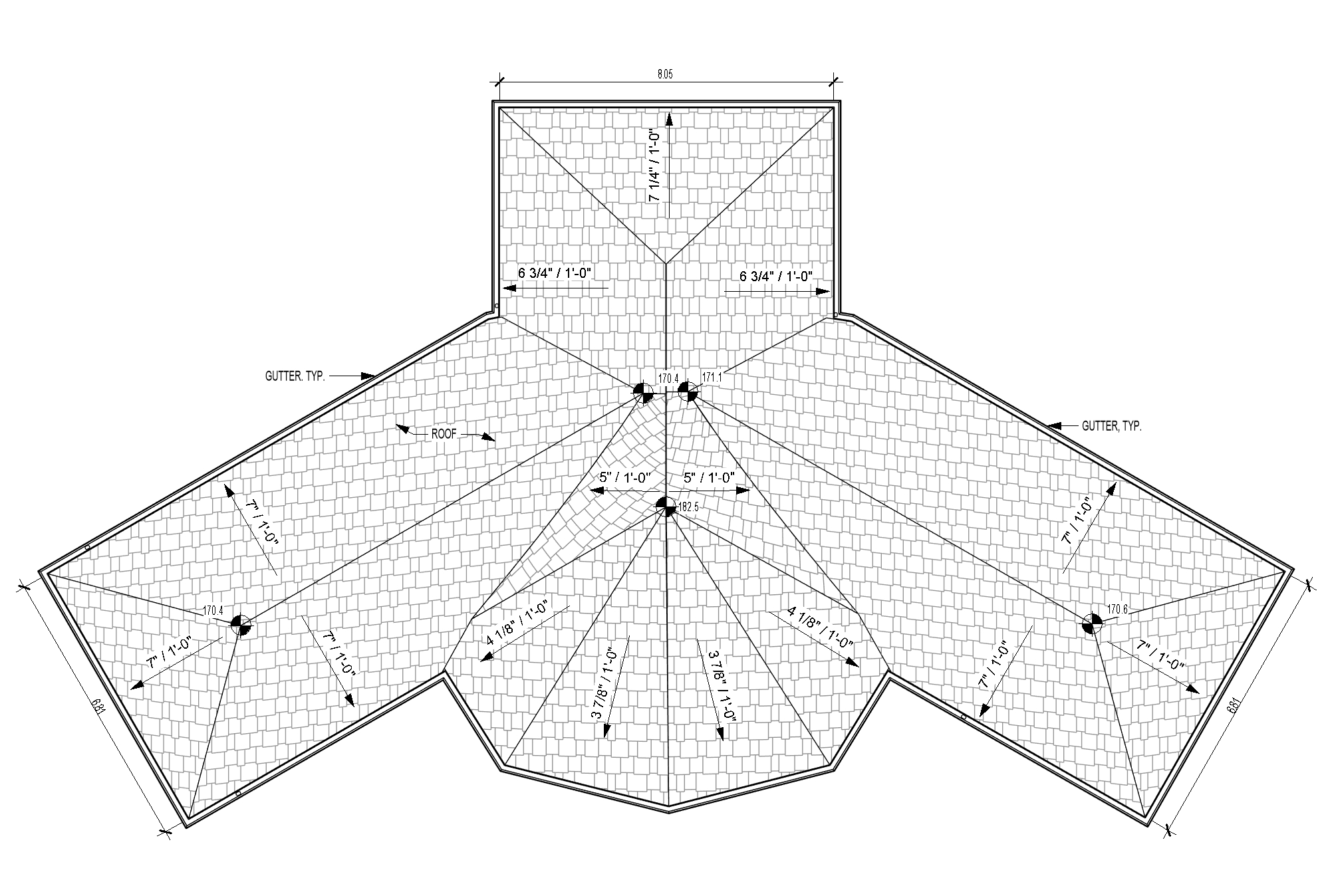

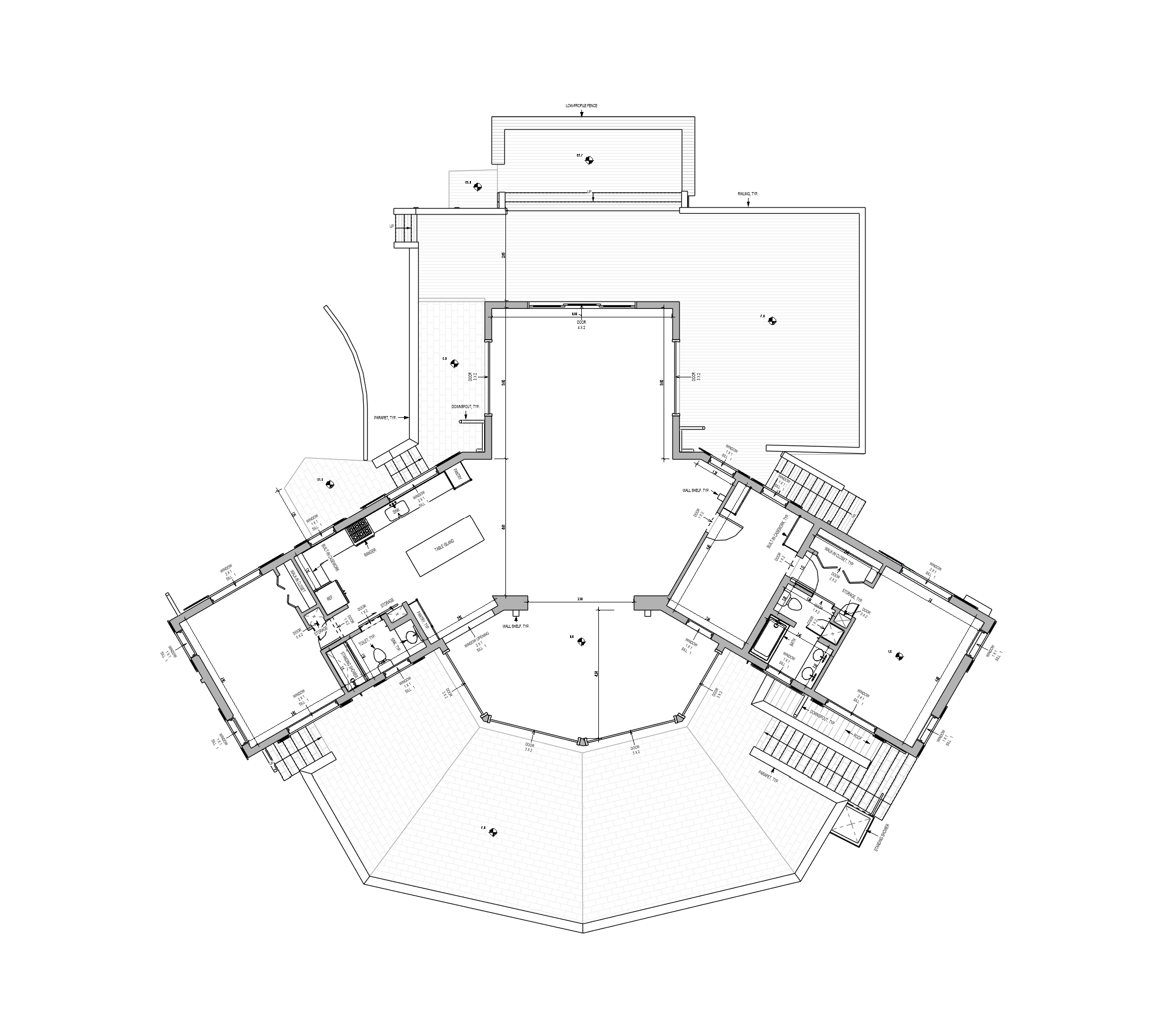

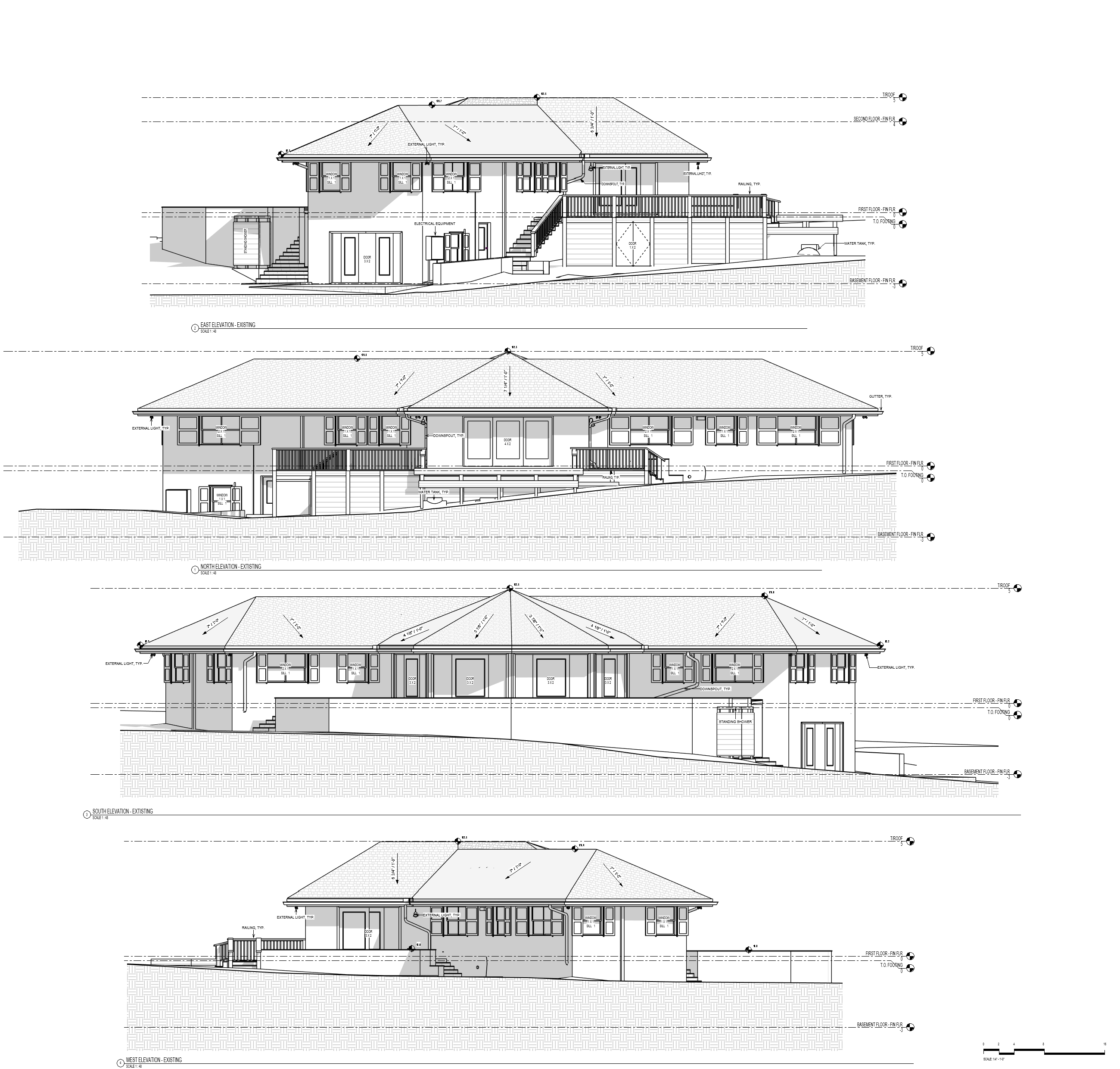

Technical Drawings
Easy-to-read plans and sections showing all key details.
Walkthrough Video
A short video tour to see the project from every angle.
3D Walkthrough Video via Autodesk Construction Cloud
An online 3D tour that clients can view and explore anytime.
